Makes precise cuts at 40° – 140° and intermediate degrees.
OST-40 Aluminum UPVC Undercut Cutting Machine (⌀450Mm Saw)

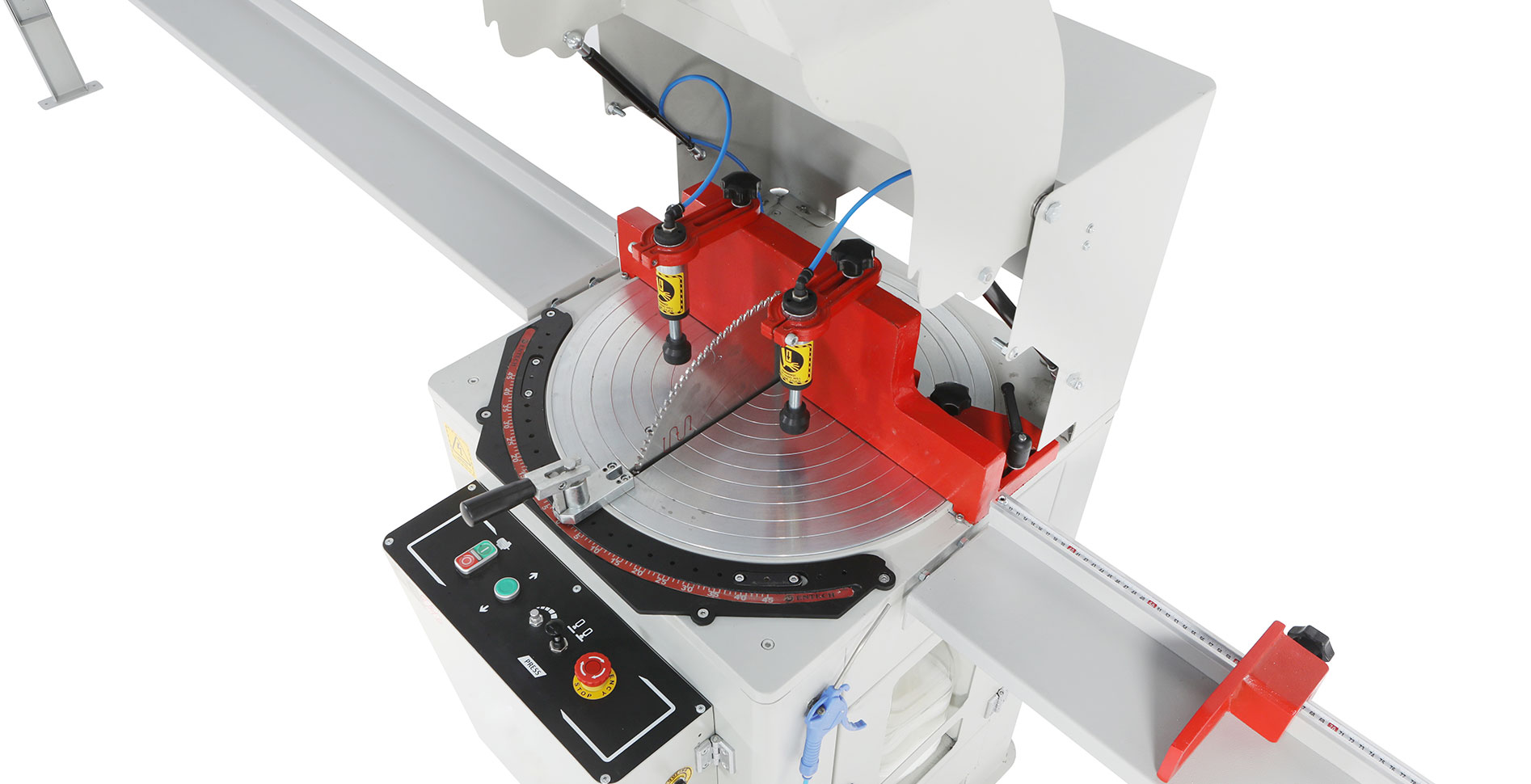

PVC MachineQuick adjustment buffers for 15°, 22.5° , 30° , 45°, 60°, 90° degrees
Table fixing arm for intermediate degrees

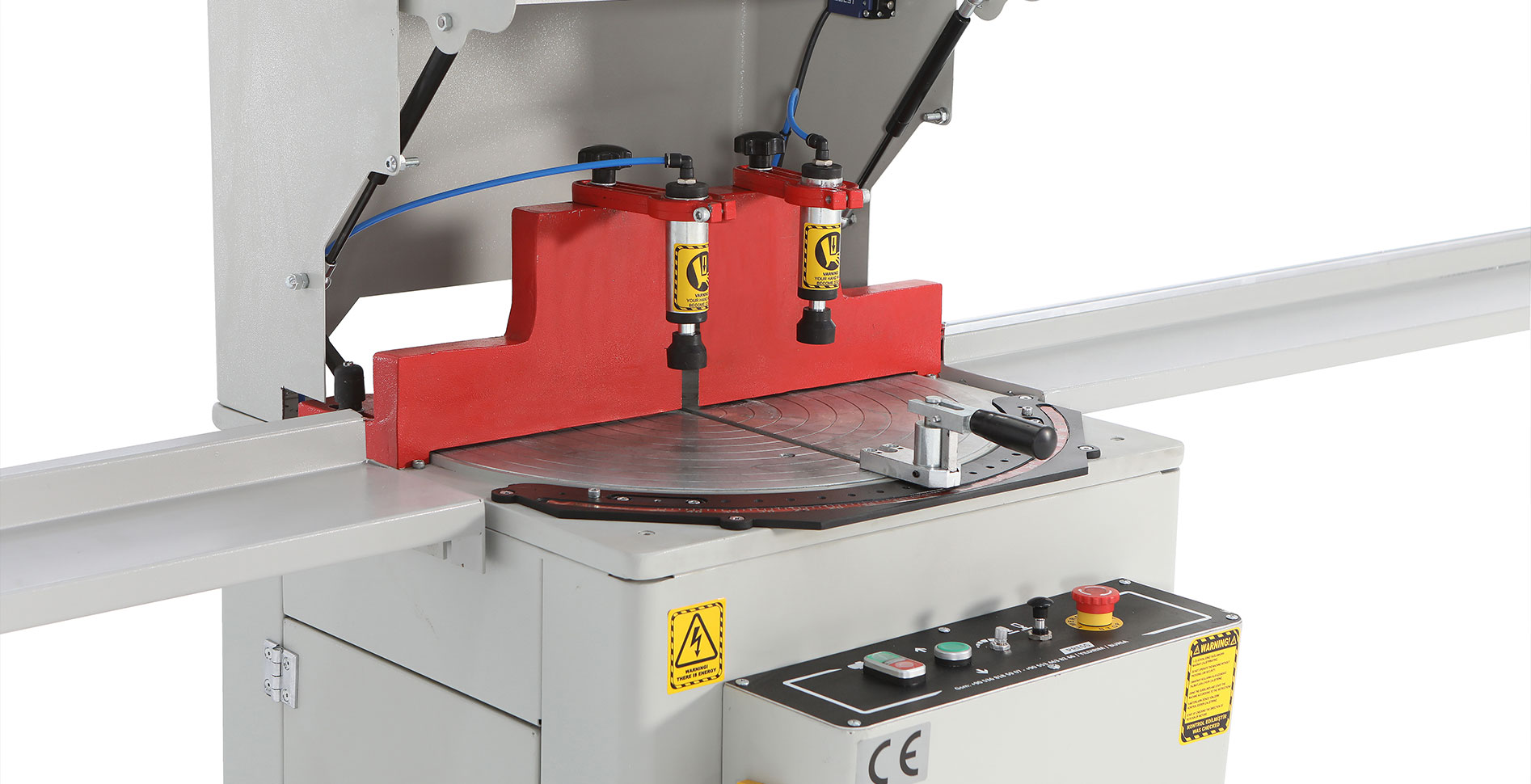

Protection cover for safe cutting

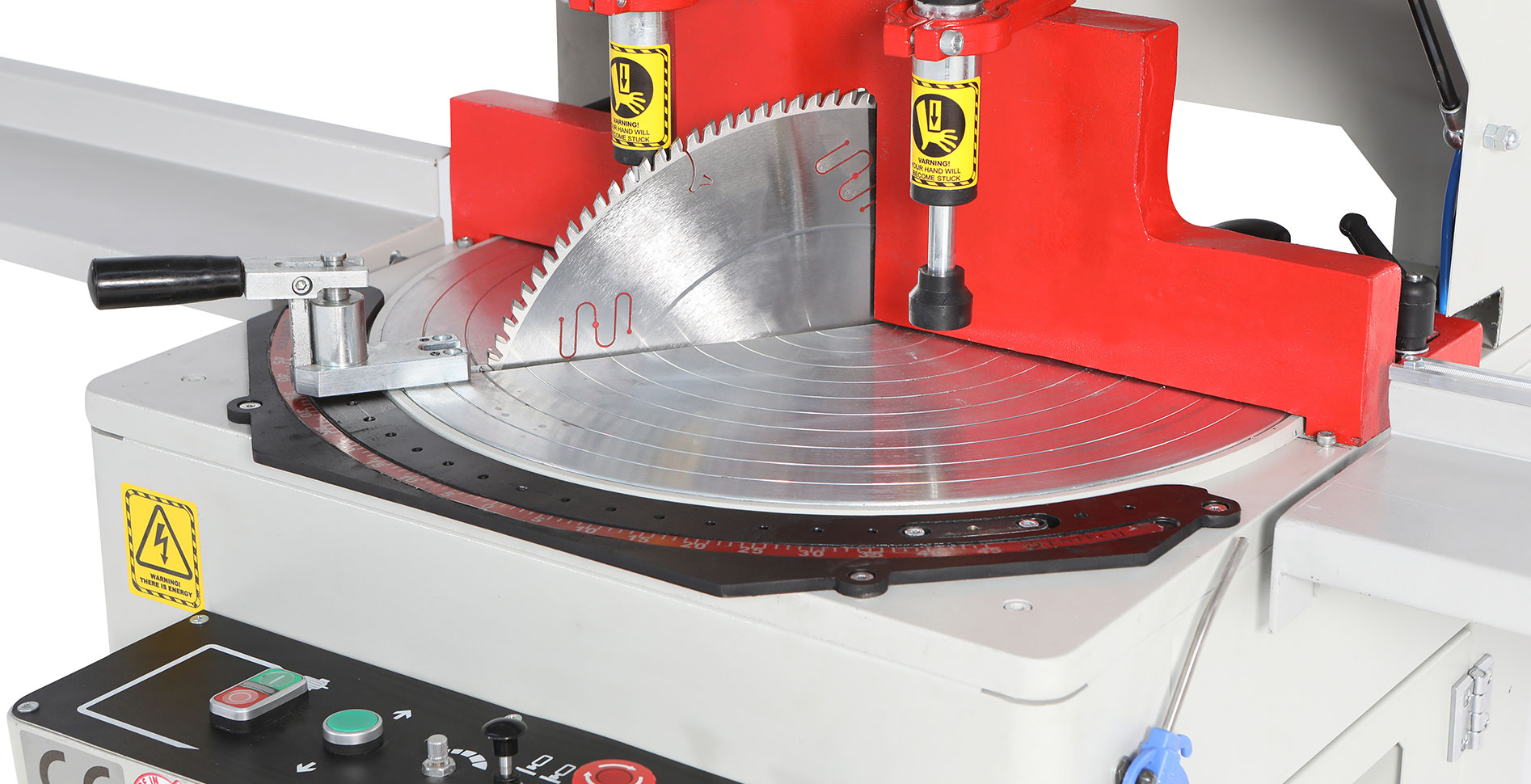

Diamond saw diameter 450 mm Exit distance: 12.5 cm

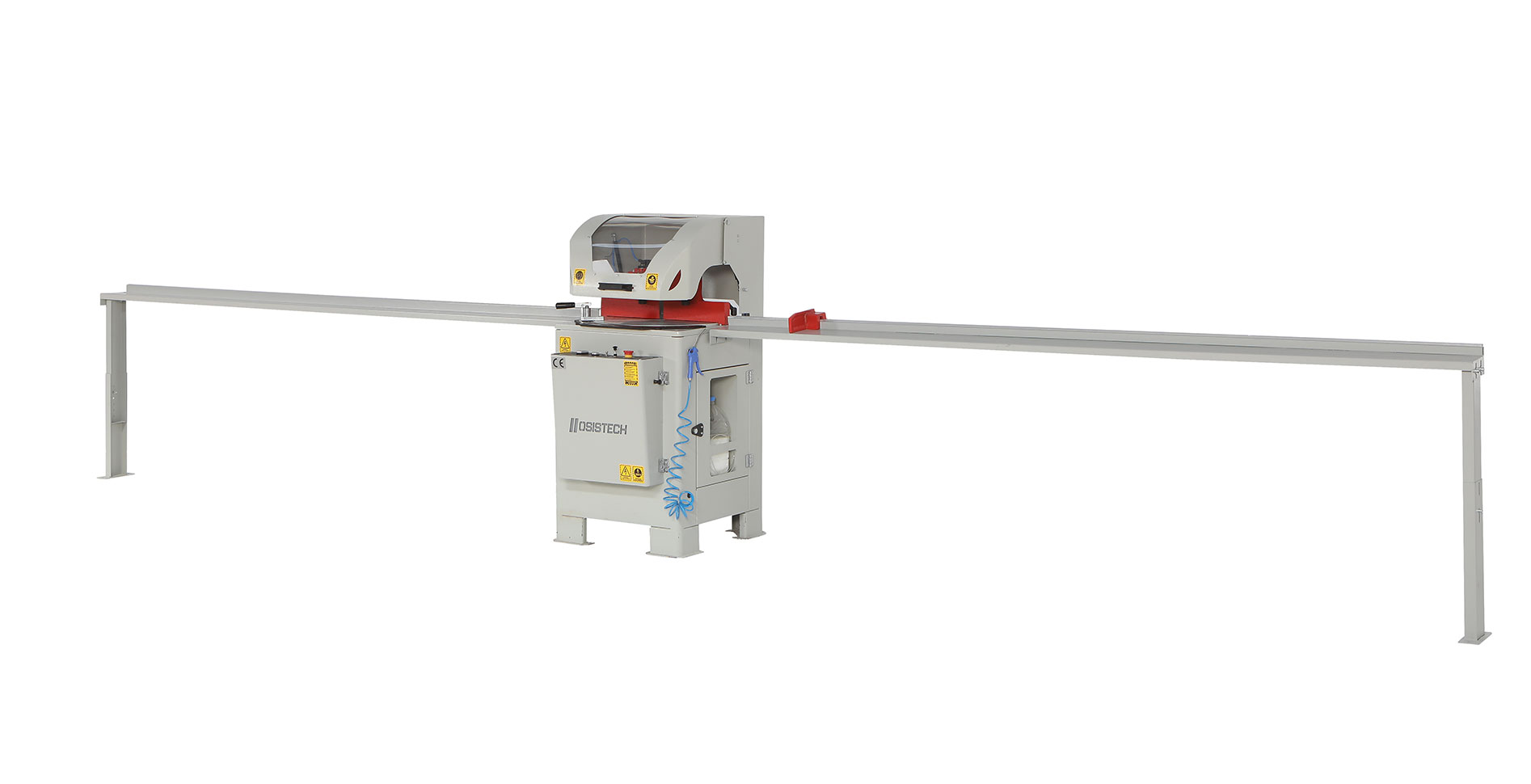

Measuring and transport conveyors are available as standard. (3 meters right-left)
Option:
Cooling system for cutting aluminum profiles
Hydrocheak system for cutting aluminium profiles.
| Power Supply | 380 V, 3ph, 50-60 Hz |
| Total Power | 2,2kW, 5A |
| Air Pressure | 6-8 Bar |
| Air Consumption | 41 It. / min. |
| Saw Motor Speed | 2810 rpm |
| Max. Profile Dimensions | 217mm × 124mm |
| Machine Width | 930 mm |
| Machine Height | 1390 mm |
| Machine Length | 890 mm |
| Machine Weight | 230 kg |
